2000W Balcony Power Plant Set (2700Wp) - Ja Solar 450W - APsystems EZHI with Felicity LPBA48100-OL (LUX-E-48100LG04) 5.12 kWh

SKU:  1813
  • ✓︎
    JA Solar 455W JAM54D41LB - 6 bifacial glass-glass modules, 2730 Wp total power
  • ✓︎
    APsystems EZHI Hybrid Microinverter - single-phase, with backup power (EPS)
  • ✓︎
    Felicity LUX-E-48100LG04 (LV) - 5.12 kWh low-voltage battery storage, LiFePO4
Available immediately
Delivery time: 5 - 6 weeks
from
1.449,00 €
incl. 0% VAT , plus shipping costs
Pay securely via:
PayPal
Amazon Pay
ApplePay
Google Pay
Mastercard
Visa
Klarna
Rechnung

Question about item

Ask us your question

Schritt 1/2:
Please select only one component.
  Please select only one component.

Energiemanagement

Schritt 2/2:
Please select at least 1.
  Please select at least 1.

Your configuration

incl. 0% VAT , plus shipping costs

2000W Balcony Power Plant Set (2700Wp) - Ja Solar 450W - APsystems EZHI with Felicity LPBA48100-OL (LUX-E-48100LG04) 5.12 kWh
2000W Balcony Power Plant Set (2700Wp) - Ja Solar 450W - APsystems EZHI with Felicity LPBA48100-OL (LUX-E-48100LG04) 5.12 kWh
2000W Balcony Power Plant Set (2700Wp) - Ja Solar 450W - APsystems EZHI with Felicity LPBA48100-OL (LUX-E-48100LG04) 5.12 kWh
2000W Balcony Power Plant Set (2700Wp) - Ja Solar 450W - APsystems EZHI with Felicity LPBA48100-OL (LUX-E-48100LG04) 5.12 kWh
2000W Balcony Power Plant Set (2700Wp) - Ja Solar 450W - APsystems EZHI with Felicity LPBA48100-OL (LUX-E-48100LG04) 5.12 kWh
2000W Balcony Power Plant Set (2700Wp) - Ja Solar 450W - APsystems EZHI with Felicity LPBA48100-OL (LUX-E-48100LG04) 5.12 kWh

Question about item

Ask us your question

Description

2000W Balcony Power Plant Set (2700Wp) - Ja Solar 450W - APsystems EZHI with Felicity LPBA48100-OL (LUX-E-48100LG04) 5.12 kWh combines powerful photovoltaic generation with battery storage in a plug-and-play complete system. With 6 bifacial JA Solar modules, you achieve a total rated output of 2730 Wp, while the Felicity low-voltage battery storage holds 5.12 kWh of your solar power ready for the evening and nighttime hours. This way, you use your self-generated energy around the clock and become a little more independent from the public grid.

Your advantages at a glance

  • More self-consumption: The EZHI hybrid inverter stores excess solar power and releases it again at night.
  • Backup power capable: The integrated off-grid EPS function bridges power outages with a switchover time under 10 ms.
  • High safety: Low-voltage technology (51.2 V), LiFePO4 cells, and an integrated aerosol fire suppression system in the battery storage.
  • DIY-friendly: Plug & play concept with pre-assembled cables and app monitoring via Wi-Fi and Bluetooth.

The system in detail

The solar modules

The heart of the power generation consists of 6 JA Solar modules of type JAM54D41LB with 455 W each [PLEASE CHECK: The attached datasheet refers to the JAM66D50 GB series and not to the listed model JAM54D41LB — please provide the correct datasheet]. These are bifacial n-type glass-glass modules in full-black design, which also use the rear side for energy generation. This gives you a higher overall yield and a long service life, supported by the robust glass-glass design.

The inverters

Two APsystems inverters work together in this set: the EZ1-M with a maximum AC output power of up to 799 VA, and the EZHI hybrid microinverter. The EZHI is a single-phase device that establishes the connection between solar modules, battery storage, and the home network. It supports continuous fast charging up to 2400 W, operates fanless and quietly thanks to GaN technology, and enables maximum self-consumption with its zero feed-in function. Both devices feature integrated Wi-Fi and Bluetooth for convenient monitoring via app.

The battery storage

The Felicity LUX-E-48100LG04 stores the solar energy generated during the day with 5.12 kWh of usable capacity. LiFePO4 technology ensures high safety and a cycle life of at least 6000 cycles. An integrated smart BMS, a breaker, and an aerosol fire suppression system reliably protect the low-voltage battery storage. If needed, capacity can be expanded by up to 12 units connected in parallel (max. 61.44 kWh).

SYSTEM OVERVIEW (overall system data)
Total rated PV output 2730 Wp (6 × 455 Wp)
Storage capacity 5.12 kWh (LiFePO4, low-voltage)
Inverter type APsystems EZHI hybrid microinverter, single-phase
Backup power / UPS Yes, off-grid EPS (switchover time < 10 ms)
Monitoring Wi-Fi & Bluetooth via AP EasyPower app
SOLAR MODULES 6x JA Solar JAM54D41LB (values per attached series datasheet)
Module type Bifacial, n-type glass-glass, full black
Rated power (Pmax) 455 Wp
Cell technology n-type
INVERTER 1x APsystems EZ1-M (800W microinverter, EMEA)
Maximum output power 600 VA / 799 VA
Recommended PV power range (STC) 300 Wp – 730 Wp+
MPPT voltage range 28 V – 45 V
Max. input voltage 60 V
Max. input current 20 A × 2
Rated output voltage 230 V (184 V – 253 V)
Max. efficiency 97.3 %
Communication Integrated Wi-Fi and Bluetooth
Enclosure protection rating IP67
Warranty 12 years standard, optional 20 years
HYBRID INVERTER 1x APsystems EZHI (single-phase hybrid microinverter, EMEA)
Maximum PV input power 600 W × 2
Recommended PV power range (STC) 430 Wp – 900 Wp+
MPPT voltage range 12 V – 48 V
Standard output power (on-grid) 800 VA (max. 1200 VA)
Max. output power (off-grid) 1200 VA (peak 1800 VA, 10 s)
Battery voltage (nominal) 51.2 V (range 40 – 60 VDC)
Max. charge / discharge current 40 A / 27 A
UPS switchover time 5 ms
Max. efficiency 96.2 %
Communication Integrated Wi-Fi and Bluetooth (CAN to battery)
Enclosure protection rating IP67
Dimensions (W x H x D) 351 mm × 269 mm × 47 mm
Weight 8 kg
Warranty 12 years standard
BATTERY STORAGE 1x Felicity LUX-E-48100LG04 (low-voltage battery storage, LiFePO4)
Battery technology Lithium iron phosphate (LiFePO4)
Rated energy 5.12 kWh
Rated capacity 100 Ah
Rated voltage 51.2 V (operating 44.8 – 57.6 V)
Max. charge/discharge current (continuous) 60 A
Peak current (15 s) 100 A
Depth of discharge (DoD) ≥ 95 %
Cycle life ≥ 6000 cycles
Scalability Max. 12 units in parallel (61.44 kWh)
Communication RS485 / CAN
Protection Integrated smart BMS, breaker, aerosol fire suppression system
Mounting type Wall or floor mounting
Protection rating IP65
Dimensions 665 × 440 × 175 mm
Weight 48.5 kg
Warranty 10 years
CONNECTION CABLE 1x Solarscouts Betteri BC01 to Schuko (grid connection cable)
Connectors 1x Betteri connector, 1x household plug (Type F / Schuko)
Cable length 5 m
Cross-section 3 × 1.5 mm²
Color Black
Protection rating (Schuko side) IP44 (splash-proof)
Application Indoor and outdoor use
Y-SPLITTER 2x Sovinar V15S-Y-V15/V15 (M12 adapter, Pepperl+Fuchs)
Design M12 plug to 2x M12 socket, 5-pin, A-coded
Operating voltage max. 48 V AC / 60 V DC
Operating current 4 A
Protection rating IP67
Ambient temperature -40 °C to +90 °C

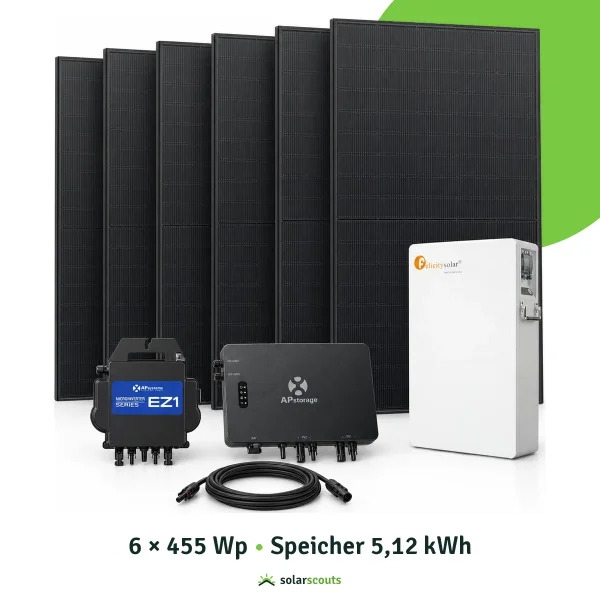

Scope of delivery

  • 6x JA Solar 455W JAM54D41LB bifacial full black n-type glass-glass solar module
  • 1x APsystems EZHI hybrid microinverter
  • 1x APsystems EZ1-M 800W microinverter with Wi-Fi and Bluetooth
  • 1x Felicity LPBA48100-OL (LUX-E-48100LG04) 5.12 kWh low-voltage battery storage
  • 1x APsystems EZ Bat Box
  • 6x Solarscouts MC4 solar cable 4 mm², 5 meters (1 pair per set)
  • 1x Solarscouts 5 m connection cable Betteri BC01 to Schuko
  • 2x Sovinar Y-splitter solar panel adapter

Datenblatt - JAM54D41 430-455 LB (DE)

Datenblatt - APsystems EZHI

Datenblatt - Felicity LUX-E-48100LG04 (EN)

Batteries Declaration - FLA-FLS-FLH and LUX Series (EN)

Installationsanleitung - APSystems EZHI mit Speicher

Datenblatt - APSystems EZ1-M (DE)

APsystems EZHI - Battery Compatibility List of EZHI Series (EN)

APSystems - EZHI Benutzerhandbuch (DE)
