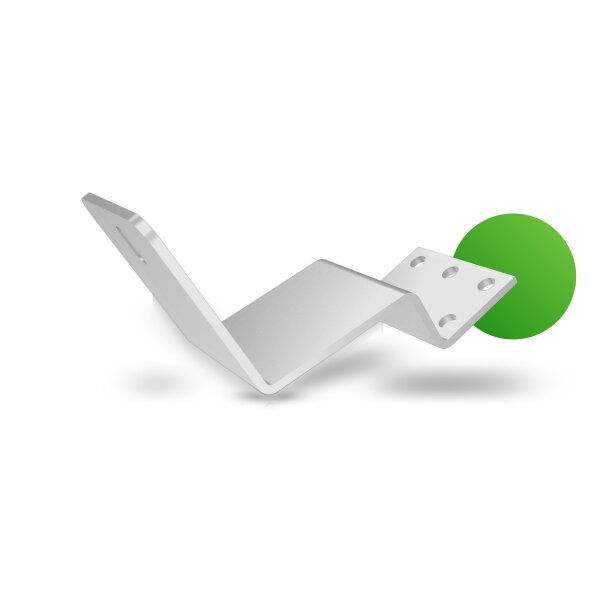

K2 Systems SingleHook FlatTile

SKU: 2004416

✓︎ 75x4 mm bracket made of Magnelis 1.0242 (S250GD+ZM310)
✓︎ For plain tiles (beaver tail) in double and crown lap
✓︎ Compatible with SingleRail 36, 36 Light and 50

Currently out of stock

3,29 €

incl. 0% VAT , plus

Choose tax zone / country of delivery

Pay securely via:

Question about item

Ask us your question

Question about item

Ask us your question

Description

K2 SingleHook FlatTile is a PV roof hook for plain tile (beaver tail) roofs with a 75x4 mm bracket and a total height of approx. 144 mm. It supports the mounting rail of the K2 SingleRail System on double lap and crown lap roofing. The solar roof hook is made of Magnelis 1.0242 (S250GD+ZM310) and is intended for roof pitches from 18 to 75°.

The key benefits for your business

Designed for plain tiles: The SingleHook FlatTile is designed for plain tile (beaver tail) roofing. It replaces the previous plain tile roof hook SolidHook FLA 75×4 (2003073). Your business can therefore integrate it directly into existing workflows for this roof type.
Part of the K2 SingleRail System: The roof hook is compatible with the SingleRail 36, 36 Light and 50 rails. The rail is fastened with a hammer head bolt M8x20 (1002387) and a flange nut M8 (2002744). Both parts are available separately.
Clearly defined material: The hook is made of Magnelis 1.0242 (S250GD+ZM310). The bracket measures 75x4 mm and the weight is 0.625 kg. This gives you clear specifications for planning and material scheduling.
Wide pitch range: The system is intended for roof pitches from 18 to 75°. This allows you to cover both shallow and steep plain tile roofs with a single hook type.

PV roof hook for plain tiles in everyday installation

For sealing, two flashing plates are required per roof hook, either 2004282 or 2004440. They are not included with the item. Adjust the packing material according to the batten height and type of roofing. For double lap, it is 5–10 mm with a 24 mm batten and 10–16 mm with a 30 mm batten. For crown lap, it is 17–22 mm with a 24 mm batten and 28–34 mm with a 30 mm batten. Installation and commissioning must be carried out by suitably qualified persons.

GENERAL DATA Product and system
Manufacturer item number	2004416
Mounting system	K2 SingleRail System
Compatible rails	SingleRail 36 / 36 Light / 50
Material	Magnelis 1.0242 (S250GD+ZM310)
INSTALLATION & USE Application and accessories
Roof pitch	18–75°
Rail fastening included	No
Rail fastening (separate)	Hammer head bolt M8x20 (1002387) + flange nut M8 (2002744)
Flashing plates required per hook	2 pieces
Packing material double lap, batten 24 mm	5–10 mm
Packing material double lap, batten 30 mm	10–16 mm
Packing material crown lap, batten 24 mm	17–22 mm
Packing material crown lap, batten 30 mm	28–34 mm
DIMENSIONS Dimensions and weight
Total height	approx. 144 mm
Bracket cross-section	75 x 4 mm
Weight	0.625 kg

Frequently asked questions

Which screws do I need for the PV roof hook K2 SingleHook FlatTile?
The SingleRail mounting rail is fastened with a hammer head bolt M8x20 (1002387) and a flange nut M8 (2002744). Neither part is included with the roof hook; both are available separately.

Which mounting rails are compatible with the roof hook?
The K2 SingleHook FlatTile is part of the K2 SingleRail System and is combined with the SingleRail 36, SingleRail 36 Light or SingleRail 50 rails.

Which roof pitch is the plain tile roof hook suitable for?
The K2 SingleRail System with this roof hook is intended for roof pitches from 18 to 75°. Installation is described for double lap and crown lap roofing.

What is required in addition to the roof hook?
Two flashing plates are required per roof hook (2004282 or 2004440). In addition, you need the rail fastening consisting of a hammer head bolt M8x20 and flange nut M8, as well as packing material suited to the batten height and type of roofing.
