K2 Systems

K2 Systems SingleHook FlatTile sheet metal, anthracite

SKU: 2004440

✓︎ Compatible with the K2 SingleHook FlatTile roof hook (2004416)
✓︎ Aluminium 3.0205 with butyl strips for sealing
✓︎ Two covers per roof hook for sufficient tightness

Available immediately

Delivery time: ca. 4 weeks

1,49 €

incl. 0% VAT , plus

Choose tax zone / country of delivery

Please note the permissible order quantity of 1 Units.

Pay securely via:

Question about item

Ask us your question

K2 Systems SingleHook FlatTile sheet metal, anthracite

Question about item

Ask us your question

Description

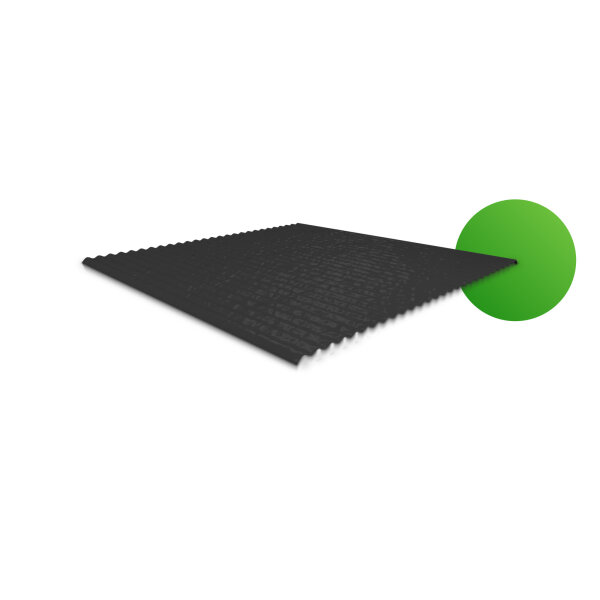

K2 SingleHook FlatTile sheet metal is an anthracite metal cover in the format 300x260 mm made of aluminium 3.0205 (EN-AW-1200) with butyl strips. It belongs to the SingleHook FlatTile roof hook (2004416) in the K2 SingleRail System. As a sheet metal cover on the roof, it seals the hook area when mounting a PV substructure on plain tile (beaver tail) roofs. Two covers are used per roof hook.

The key benefits at a glance

Matched to the roof hook: The metal cover is intended for the SingleHook FlatTile roof hook (2004416) in the K2 SingleRail System. With plain tile (beaver tail) roofing, this sheet metal replacement tile is required for the hook.
Sealing in the hook area: Two covers per roof hook ensure sufficient tightness at the point where the hook passes through the roofing.
Aluminium with butyl strips: The cover is made of aluminium 3.0205 (EN-AW-1200). The butyl strips bond it to the surrounding tiles.
Colour anthracite: The anthracite version is easy to handle at 0.044 kg per piece.

Sheet metal roof cover for the PV substructure on plain tiles

If you mount your photovoltaic system with the K2 SingleRail System and the SingleHook FlatTile roof hook on a plain tile (beaver tail) roof, use two of these metal covers per hook. The system is designed for roof pitches from 18 to 75°. The roof tiles should be dry and clean when bonding. For the butyl strip, application between 10 and 30 °C is recommended. Depending on batten height and roofing type, packing material of suitable thickness is provided for.

GENERAL DATA Product and application
Manufacturer number	2004440
Colour	Anthracite
Material	Aluminium 3.0205 (EN-AW-1200)
Sealing	Butyl strips
Mounting system	K2 SingleRail System
Application	Pitched roof
Associated roof hook	SingleHook FlatTile (FLA) 2004416
Suitable roofing	Plain tile / beaver tail (sheet metal replacement tile required)
MOUNTING & APPLICATION Installation notes
Required per roof hook	2 pieces
Roof pitch (SingleHook FlatTile system)	18 - 75 °
Application temperature butyl adhesive strip (recommended)	10 - 30 °C
Surface when bonding	dry and clean
Packing material double-lap roofing (batten height 24 / 30 mm)	5-10 / 10-16 mm
Packing material crown roofing (batten height 24 / 30 mm)	17-22 / 28-34 mm
DIMENSIONS Dimensions, weight and packaging
Dimensions	300x260 mm
Weight	0.044 kg
Packaging	50 / box; 2000 / pallet
