K2 Systems Flange Nut M8 Self-Locking with Serrations

SKU: 2002744

✓︎ Self-locking thanks to serrations and plastic insert
✓︎ Material: stainless steel A2 according to DIN 6926
✓︎ M8 thread with 13 mm wrench size

Currently out of stock

0,22 €

incl. 0% VAT , plus

Choose tax zone / country of delivery

Pay securely via:

Question about item

Ask us your question

K2 Systems Flange Nut M8 Self-Locking with Serrations

Question about item

Ask us your question

Description

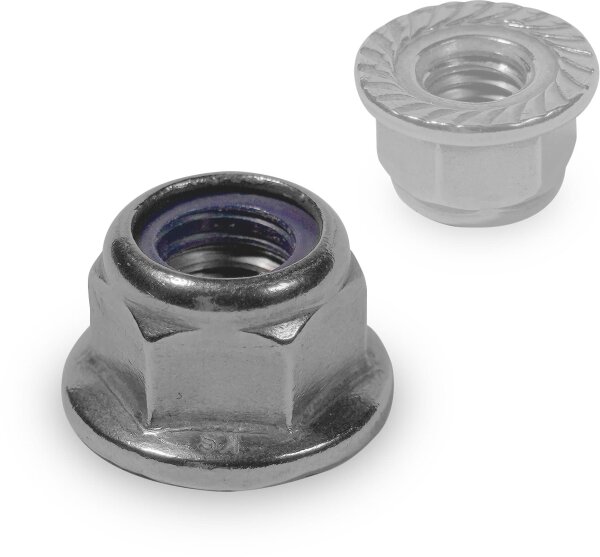

K2 Flange Nut M8 is a self-locking nut with M8 thread according to DIN 6926, made of stainless steel A2. With serrations and a plastic insert, the flange nut serves in your business as a locking nut for screw connections in the K2 SingleRail System. With a wrench size of 13 mm, the nut can be installed using standard tools.

The key benefits for your business

Double locking: With serrations on the flange and a plastic insert, the nut is designed as a self-locking nut. It thus secures the screw connection without additional locking elements.
Standard part according to DIN 6926: The flange nut complies with DIN 6926. This makes clear identification easier for your team during planning and warehousing.
Stainless steel A2: The manufacturer specifies stainless steel A2 as the material.
Suitable for the K2 SingleRail System: The manufacturer assigns the M8 flange nut to the K2 SingleRail System. It therefore fits into existing K2 installations.

Flange nut with serrations in everyday installation

In operation, you use the K2 Flange Nut M8 for screw connections in the K2 SingleRail System. The integrated flange and the serrations take over the function of a separate washer. The plastic insert provides additional locking. With a wrench size of 13 mm and M8 thread, the locking nut is quick to install.

GENERAL DATA Standard and material
Standard	DIN 6926
Material	Stainless steel A2
Mounting system	K2 SingleRail System
DESIGN & LOCKING Type
Locking	Serrations on the flange and plastic insert (self-locking)
With flange	yes
With serrations	yes
DIMENSIONS Measurements
Nominal thread diameter	8 mm
Wrench size	13 mm
