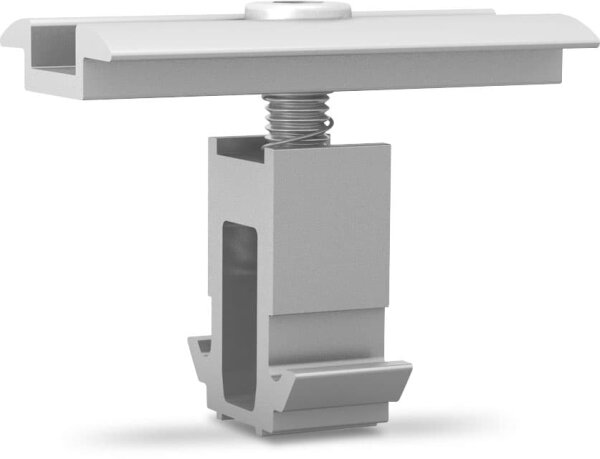

K2 Systems DomeClamp MC 30-50 mm

SKU: 2002558

✓︎ Middle clamp for PV modules with 30–50 mm frame height
✓︎ Suitable for K2 Dome 6, Dome Zero and MiniRail
✓︎ Aluminium EN AW 6063 T66 with stainless steel A2-70

Currently out of stock

1,49 €

incl. 0% VAT , plus

Choose tax zone / country of delivery

Pay securely via:

Question about item

Ask us your question

Question about item

Ask us your question

Description

K2 DomeClamp MC 30-50 mm is a middle clamp for fastening PV modules with a frame height of 30–50 mm on the K2 Dome 6 system. As a PV module clamp, it securely holds two adjacent modules on the mounting system. The solar clamp is made of aluminium EN AW 6063 T66 and stainless steel A2-70. It is also compatible with the K2 Dome Zero and K2 MiniRail systems and can therefore be used on flat roofs as well as pitched roofs.

The key benefits at a glance

Suitable for three K2 systems: The middle clamp can be used in the K2 Dome 6 system, the K2 Dome Zero system and the K2 MiniRail system.
Clamping range 30–50 mm: The module middle clamp is designed for module frames with a height of 30–50 mm.
Aluminium and stainless steel: The clamp body is made of aluminium EN AW 6063 T66, the connecting elements of stainless steel A2-70.
Clear installation specification: In the K2 system, all module clamps are tightened to 14 Nm. This ensures uniform installation.
12-year product warranty: Within the system assembly, a product warranty of 12 years applies to all K2 components.

The PV module clamp in use on flat roofs and pitched roofs

The middle clamp sits between two adjacent modules and fixes both frames to the mounting system. It is suitable for the K2 Dome 6 system, K2 Dome Zero and K2 MiniRail and therefore for flat and pitched roofs. This applies to private rooftop systems as well as systems on commercial buildings. Tighten the clamp to 14 Nm and observe the installation instructions of the respective K2 system.

GENERAL DATA Product and application
Manufacturer part number	2002558
Clamp type	Middle clamp
Compatible mounting systems	K2 Dome 6 System, K2 Dome Zero System, K2 MiniRail System
Area of application	Flat roof, pitched roof
MECHANICAL SPECIFICATIONS Clamping range and installation
Module frame height	30–50 mm
Tightening torque module clamps	14 Nm
Material	Aluminium EN AW 6063 T66, stainless steel A2-70
WARRANTY & SAFETY System level
Product warranty (system assembly)	12 years
Approval (system level S-Dome 6.10 Xpress)	abZ for complete system S-Dome 6.10 Xpress

Frequently asked questions

Which module frame heights is the K2 DomeClamp MC 30-50 suitable for?
This middle clamp is designed for module frame heights of 30 to 50 mm and is therefore suitable for a wide range of common solar modules with a corresponding frame thickness.

Which mounting systems is the clamp compatible with?
The DomeClamp MC 30-50 is compatible with the K2 Dome 6 system, the K2 Dome Zero system and the K2 MiniRail system.

What material is the clamp made of?
The clamps of the system are made of aluminium EN AW-6063 T66 and stainless steel, which ensures a robust and weather-resistant design.

What torque must the clamp be tightened to?
A tightening torque of 14 Nm is specified for installing the module clamps.

How long is the warranty on the system assembly?
A product warranty of 12 years applies to the system assembly.
