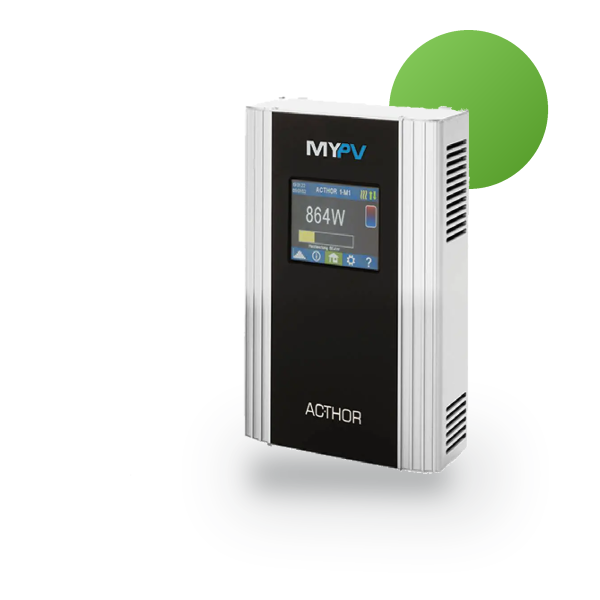

my-PV AC-THOR 3 kW PV Surplus Controller for Heating Element Control

SKU:  3002
  • ✓︎ Continuously variable control from 0 to 3000 W depending on PV surplus
  • ✓︎ Additional relay output with 16 A
  • ✓︎ Operation directly on the 2.83-inch color touch display

Currently out of stock

839,97 €
incl. 19% VAT , plus shipping costs
Pay securely via:
PayPal
Amazon Pay
ApplePay
Google Pay
Mastercard
Visa
Klarna
Rechnung

Question about item

Ask us your question

Question about item

Ask us your question

Description

my-PV AC-THOR is a continuously variable PV surplus controller with 3 kW for heating element control. It supplies electric heat sources such as heating elements linearly with 0 to 3000 W depending on the available solar power. This way, you can use your PV surplus for hot water and optionally for room heating.

Key benefits at a glance

  • Continuously variable power control: The AC-THOR regulates the power of your heating element linearly between 0 and 3000 W. The heating element thus receives exactly the solar power currently available as surplus.
  • Relay output for more power: Via the additional relay output with 16 A, hot water with 6 kW is possible in operating mode M3. The relay switches on for the first time when a surplus of 3 kW is exceeded.
  • Integration via Ethernet and Modbus RTU: A network connection via RJ45 (Ethernet) and Modbus RTU via RS485 are available for communication. This allows the device to be connected to signal sources such as the my-PV WiFi Meter.
  • Operation without additional devices: The 2.83-inch color graphic touch display allows operation directly on the device. German, English, French, and Spanish are available as menu languages.

Heating element controller for everyday hot water

In operating mode M1, the AC-THOR heats water with a single-phase heating element. A temperature sensor is included; additional sensors are available separately. The heating element is connected via an insulated socket for resistive loads, while the device itself is connected to 230 V via a grounded plug. The version offered here carries manufacturer number 20-0100.

Use in homes and businesses

In combination with the my-PV WiFi Meter, the AC-THOR uses surplus PV power for heating elements, heating mats, or infrared panels. For greater heat demand, for example in commercial operation, several devices can be combined in multi-mode: up to 10 slaves are possible per master. External control is also possible via a PWM input.

GENERAL DATA Function and operation
Operating mode M1 Hot water with a single-phase heating element
Display 2.83-inch color graphic touchscreen
Menu languages German, English, French, Spanish
Temperature sensors included 1 unit
ELECTRICAL SPECIFICATIONS Power and connection
Continuously variable output power 0–3000 W
Relay output 16 A
Mains voltage / frequency range 230 V, 45–65 Hz
Mains connection single-phase, grounded plug, 230 V, 50–60 Hz
Load connection insulated socket for resistive loads
Operating mode M3 total power 6 kW
M3 first relay activation from surplus 3 kW
COMMUNICATION & SAFETY Interfaces
Modbus RTU RS485 (A, B, GND)
Network RJ45 Ethernet
PWM input for external control 3.3–24 V DC, 50–200 Hz
Multi-mode slaves per master 10 units
DIMENSIONS Device and cable
Dimensions (W x H x D) 135 x 210 x 65 mm
Connection cable 2.8 m

Scope of delivery

  • 1 × my-PV AC-THOR
  • 1 × temperature sensor

Frequently asked questions

How much power does the my-PV AC-THOR control?
The AC-THOR continuously regulates power from 0 to 3000 W. It also has a relay output with 16 A. In operating mode M3, this enables hot water heating with 6 kW.

Can I connect the AC-THOR to a smart meter?
Yes, the AC-THOR can be combined with the my-PV WiFi Meter. It then uses the measured PV surplus to supply heating elements, heating mats, or infrared panels with power on a linear basis.

What interfaces does the AC-THOR have?
The AC-THOR offers a network connection via RJ45 (Ethernet) and Modbus RTU via RS485 (A, B, GND). A PWM input with 3.3–24 V DC and 50–200 Hz is also available for external control.

Is a temperature sensor included in the scope of delivery?
Yes, a temperature sensor is always included with the AC-THOR. Additional sensors are available separately.
