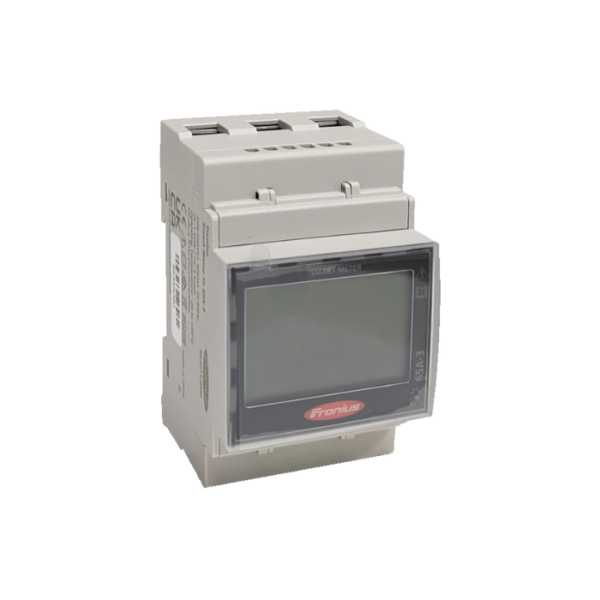

Fronius Smart Meter TS 65A-3

SKU: 2096

✓︎ Precise 3-phase direct measurement up to 3 x 65 A
✓︎ Bidirectional recording of all energy flows
✓︎ Touchscreen operation & Modbus RTU (RS485)

Available immediately

Delivery time: 6 - 9 Workdays

179,00 €

incl. 0% VAT , plus

Choose tax zone / country of delivery

Pay securely via:

Question about item

Ask us your question

Question about item

Ask us your question

Description

Fronius Smart Meter TS 65A-3 is the intelligent three-phase bidirectional meter for owners of photovoltaic systems who want to optimise their solar power in a targeted way. With a direct measuring range of 3 x 65 A, it records all energy flows quickly, reliably and precisely – the basis for efficient energy management.

Key benefits for your system

Bidirectional measurement: The Fronius Smart Meter records both the power drawn from the grid and the power fed in – the basis for optimising your self-consumption.
Convenient operation: The touchscreen display clearly shows all relevant measured values directly on the device.
Easy integration: The connection to the inverter is made via Modbus RTU (RS485) – for reliable data communication.
Three-phase recording: With direct measurement of 3 x 65 A, the TS 65A-3 covers typical requirements in residential and commercial settings.

Intelligent use of your solar power

Efficient energy management is only possible when the right data is available. The Fronius Smart Meter TS 65A-3 measures all energy flows between your photovoltaic system, your household and the public grid. In combination with the Fronius inverter and the Fronius Solar.web online monitoring, these energy flows can be visualised, controlled and thus optimised in a targeted way. This shows you exactly when it is best to use your self-generated solar power, increases your self-consumption and lowers your electricity costs in the long term. The three-phase meter can be conveniently mounted on a DIN top-hat rail indoors and integrates reliably into your existing system.

GENERAL DATA (Basic information about the meter)
Manufacturer	Fronius
Model	Smart Meter TS 65A-3
Grid type	2PN, 3P, 3PN
Mounting type	Indoor (DIN top-hat rail)
Housing	3 modules DIN 43880
Degree of protection	IP 51 (front frame), IP 20 (terminals)
ELECTRICAL SPECIFICATIONS (Voltage & current)
Nominal voltage	208 – 400 V
Operating voltage range	-20 to +20 %
Nominal frequency	45 – 65 Hz
Maximum current	3 x 65 A
Starting current	20 mA
Power consumption	≤ 1 W
Short-time overcurrent	1,950 A / 10 ms
Power cable cross-section	1 – 16 mm²
Neutral cable cross-section	1 – 16 mm²
CT & communication cable cross-section	0.05 – 1.5 mm²
ACCURACY & MEASUREMENT (Measurement classes)
Accuracy class	1
Active energy accuracy	Class 1 (EN 62053-21) / Class B (EN 50470-3)
Reactive energy accuracy	Class 2 (EN 62053-23)
Current transformer	-
COMMUNICATION & HOUSING (Interfaces and dimensions)
Interface to inverter	Modbus RTU (RS485)
Display	3 x 8-digit / touchscreen
Ambient temperature range	-25 to +65 °C
Dimensions (H x W x D)	91.5 x 53.8 x 63.0 mm
Weight	240 g
