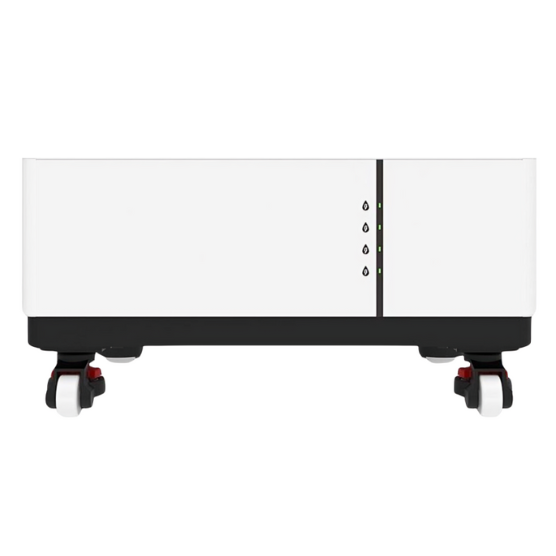

Felicity Solar Low-Voltage 5.12 kWh Module FLS48100SMG1 (LUX-X-48100LMG01) - Expansion Battery for Felicity B-Grade

SKU: 862 - B-Ware

✓︎ 5.12 kWh additional capacity for greater energy independence.
✓︎ Durable and safe LiFePO4 battery technology.
✓︎ Quick expansion thanks to a simple plug-in system.

Kann Gebrauchsspuren haben

Es können Kleinteile und Zubehör fehlen

Low stock level

Delivery time: 4 - 7 Workdays

600,00 €

incl. 0% VAT , plus

From	Unit price
2	704,62 €*

Choose tax zone / country of delivery

Pay securely via:

Question about item

Ask us your question

Felicity Solar Low-Voltage 5.12 kWh Module FLS48100SMG1 (LUX-X-48100LMG01) - Expansion Battery for Felicity B-Grade

Question about item

Ask us your question

Description

Felicity Solar Low-Voltage 5.12 kWh Module FLS48100SMG1 (LUX-X-48100LMG01) is the perfect solution for easily expanding your existing battery storage system and adapting it to your current needs.

Your Benefits at a Glance

Use significantly more of your own solar power and effectively lower your electricity costs.
Maximum safety for your home thanks to proven battery cells.
Effortless installation with the clever, cable-free stacking design.
Flexible expansion at any time as your energy needs grow in the future.

Simple Expansion for Greater Everyday Independence

With this expansion battery, you can tailor your storage system exactly to your lifestyle. If you install a heat pump, welcome a new family member, or want to charge an electric vehicle, your daily power needs increase. By simply adding this module, you can store more of the solar power you generate during the day and use it comfortably in the evening and night hours.

This effectively protects you against rising electricity prices and gives you the reassuring feeling of controlling your own energy supply. The system is designed to automatically detect the new battery, so you don't have to worry about complicated settings and can benefit immediately from the additional capacity.

GENERAL DATA
Manufacturer	Felicity ESS / Felicity Solar
Model Designation	FLS48100SMG1 (LUX-X-48100LMG01)
Product Type	Low-voltage battery expansion module (slave)
Battery Technology	Lithium Iron Phosphate (LiFePO4)
Scalability	Max. 8 modules in parallel (up to 40.96 kWh total capacity)
Communication	RS485 / CAN (controlled via control module)
Warranty	10-year manufacturer warranty
ELECTRICAL DATA
Rated Energy	5.12 kWh
Rated Capacity	100 Ah
Rated Voltage	51.2 V
Operating Voltage Range	44.8 V – 57.6 V
Recommended Charge/Discharge Current	50 A (per module)
Max. Continuous Charge/Discharge Current	60 A (per module)
Peak Charge/Discharge Current (15s)	100 A (per module)
Depth of Discharge (DoD)	> 95 %
Cycle Life	≥ 6000 cycles (at 25°C, 0.5C/0.5C, 90% DoD, 70% EOL)
SAFETY & FEATURES
Protection Rating	IP21
Protection Functions	Integrated smart BMS, circuit breaker, fuse (in the system)
Fire Protection	Integrated aerosol fire suppression system
Module Display	4x LED (status and charge indicator)
ENVIRONMENTAL CONDITIONS
Operating Temperature (Charging)	0 °C to +55 °C
Operating Temperature (Discharging)	-20 °C to +55 °C
Storage Temperature	0 °C to +35 °C
Permissible Humidity	5 % – 95 % (non-condensing)
Max. Installation Altitude	< 2000 m
MECHANICAL DATA
Dimensions (W x Scope of Delivery Felicity Solar expansion battery module Connection cable to the base unit Mounting and installation accessories
