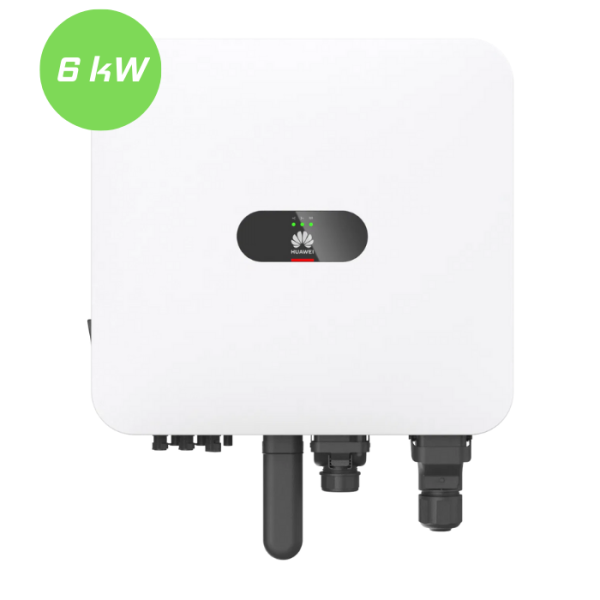

Huawei SUN2000-6K-MAP0 6 kW Hybrid Inverter

SKU: 1717 GTIN: 4262476027479 HAN: 4262476027479 Category: Huawei

The Huawei SUN2000-6K-MAP0 is a modern, three-phase hybrid inverter with a 6 kW output. It offers high efficiency, advanced protection features, and is compatible with Huawei LUNA2000 batteries. With smart technology, intuitive app control, and robust construction, it is the perfect solution for reliable home energy supply—today and in the future.

Available immediately

Delivery time: 8 - 11 Workdays

1.137,00 €

incl. 0% VAT ,

Choose tax zone / country of delivery

Certified products

Secure payment

Easy Returns

Question about item

Stell uns deine Frage

Huawei SUN2000-6K-MAP0 6 kW Hybrid Inverter

Question about item

Stell uns deine Frage

Description

Productinformation in detail

Powerful and Future-Ready

The Huawei SUN2000-6K-MAP0 hybrid inverter offers the perfect balance between performance and efficiency with a nominal power of 6 kW. Designed for modern residential rooftop systems, it combines solar technology with an innovative battery solution from the LUNA2000 series. Two independent MPP trackers ensure optimal utilization of PV power up to 11,000 Wp – even with complex module configurations or shading.

Comprehensive Protection for Maximum Safety

Whether in grid operation or emergency power function, the inverter impresses with its comprehensive protection features such as AFCI arc detection, DC and AC surge protection, residual current monitoring, and temperature control at the connections. The support for asymmetric loads, fast switching times with the SmartGuard system, and a 150% overload operation for up to 5 minutes make it a reliable core of any PV system.

Smartly Connected and User-Friendly

Thanks to integrated Wi-Fi, LED indicators, and support for smart dongles, the SUN2000-6K-MAP0 can be intuitively controlled and monitored. With an IP66 protection rating, natural convection, and operating noise below 29 dB, it is ideal for both indoor and outdoor use. The compact design, easy installation, and direct connection to the FusionSolar App complete the user experience.

Technical Data

Model	SUN2000-6K-MAP0
Maximum Efficiency	98.6%
European Weighted Efficiency	97.7%
Recommended Max. PV Power	11,000 Wp
Maximum Input Voltage	1,100 V
Operating Voltage Range	160 - 1,000 V
Start Voltage	160 V
Nominal Input Voltage	600 V
Max. Input Current per MPPT	16 A
Max. Short Circuit Current	22 A
Number of MPPT	2
Max. Inputs per MPPT	1
Compatible Battery	LUNA2000 Series
Battery Operating Voltage	600 ~ 980 V
Max. Charging Power	12,000 W
Max. Discharging Power	6,600 W
Grid Output	Three-Phase
Nominal Output Power	6,000 W
Max. Apparent Power	6,600 VA
Grid Voltage	220/380 V, 230/400 V, 240/415 V
Grid Frequency	50 Hz / 60 Hz
Max. Output Current	10.0 A
Power Factor	0.8 leading ... 0.8 lagging
Total Harmonic Distortion	≤ 3%
Protection Types	DC & AC Protection, Arc Fault, Temperature Detection
Cooling	Natural Convection
Noise Level	≤ 29 dB
Display	LED Indicators, Wi-Fi, App
Communication	RS485, Wi-Fi, Ethernet, 4G optional
Weight	21 kg
Dimensions	490 x 460 x 130 mm
Protection Class	IP66
Night Consumption	< 5.5 W
Optimizer Compatibility	SUN2000-450W-P2, 600W-P, MERC-600W-PA0

Scope of Delivery: 1 x Huawei Hybrid Inverter SUN2000-6K-MAP0.
