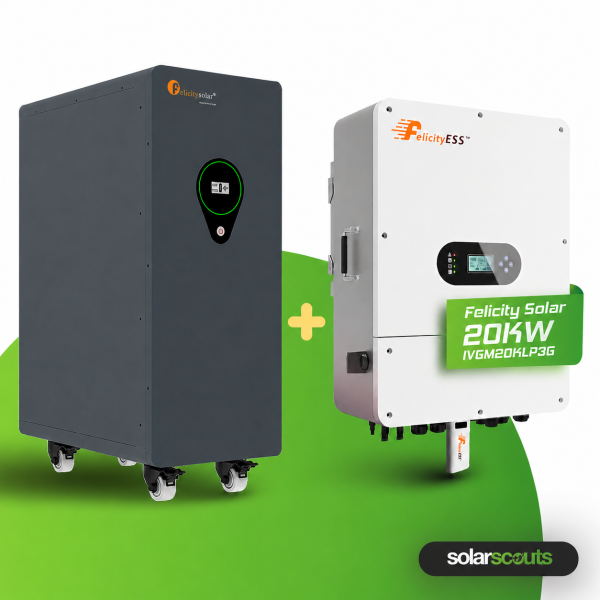

Felicity 20 kW Hybrid Inverter Set with 23.5 kWh Felicity Battery Storage

SKU: 2509

✓︎ 20 kW three-phase hybrid inverter with EPS backup power
✓︎ 23.5 kWh LiFePO4 battery storage for high self-consumption
✓︎ Outdoor-ready thanks to IP65 rating & aerosol fire suppression system

Available immediately

Delivery time: 8 - 11 Workdays

3.999,00 €

incl. 0% VAT , plus

Choose tax zone / country of delivery

Pay securely via:

Question about item

Ask us your question

Felicity 20 kW Hybrid Inverter Set with 23.5 kWh Felicity Battery Storage

Question about item

Ask us your question

Description

Felicity 20 kW Hybrid Inverter Set with 23.5 kWh Felicity Battery Storage is the powerful solution for anyone looking to store their solar power efficiently and use it across three phases. The system combines a 20 kW low-voltage hybrid inverter with a 23.5 kWh LiFePO4 battery storage unit, making it ideal for larger households, commercial properties, and systems with high energy demand.

Your Benefits at a Glance

High self-sufficiency: With 23.5 kWh of storage capacity, you can make optimal use of your solar power even in the evening and at night.
Three-phase performance: The 20 kW inverter supports 100% unbalanced three-phase output for flexible load distribution.
Backup power capable: The integrated EPS function reliably keeps you supplied during power outages.
Maximum safety: The battery storage features an integrated aerosol fire suppression system, a smart BMS, as well as a circuit breaker and fuse.

The System in Detail

The Hybrid Inverter

The Felicity IVGM20KLP3G1 is a three-phase low-voltage hybrid inverter with a rated power of 20 kW. It features 2 MPP trackers with a total of 4 PV strings and allows for a 1.6x overconfiguration up to 32 kW PV input power. Thanks to the LCD touchscreen, WiFi monitoring, and the Fsolar Smart Cloud, you can keep track of all values at any time. With an IP65 protection rating, the device is also suitable for outdoor installation.

The Battery Storage

The Felicity FLA48460-EU battery storage unit offers ample capacity for your solar power with 23.5 kWh of rated energy and LiFePO4 technology. With a depth of discharge of ≥ 95% and ≥ 6,000 cycles, it is designed for a long service life. The floor-mounted battery storage can be expanded to up to 15 units (354 kWh) if needed and fits harmoniously into your energy system – for greater independence from the public grid and noticeably lower electricity costs.

SYSTEM OVERVIEW (General system performance data)
Inverter Rated Power (AC)	20 kW
Storage Capacity	23.5 kWh
Phase Configuration	Three-phase (3L+N+PE)
Backup Power / UPS	Yes (EPS function)
Battery Technology	Lithium Iron Phosphate (LiFePO4)
INVERTER 1x FELICITY IVGM20KLP3G1 (20 kW low-voltage hybrid, three-phase)
Battery Type	Li-Ion / Lead-Acid
Battery Voltage Range	40 – 60 V
Max. Charge / Discharge Current	350 A
Max. PV Input Power	32 kW
Max. PV Input Voltage	800 V
MPPT Voltage Range	160 – 650 V
MPP Trackers / Strings	2 MPPT / 4 strings (2+2)
Rated AC Power	20 kW
Max. AC Apparent Power	22 kVA
Peak Power (Off-Grid)	2x rated power (10 s)
Rated Voltage / Range	220/380, 230/400 Vac (-20% ~ +15%)
Grid Frequency	50/60 Hz
Parallel Connection	Max. 10 units
Communication (BMS)	RS485 / CAN
Monitoring	WiFi / 4G
Protection Rating	IP65
Dimensions	750 x 450 x 268 mm
Weight (net)	48.7 kg
Warranty	5 years / 10 years
BATTERY STORAGE 1x FELICITY FLA48460-EU (23.5 kWh low-voltage LiFePO4)
Battery Technology	Lithium Iron Phosphate (LiFePO4)
Rated Energy	23.5 kWh
Rated Voltage	51.2 V
Operating Voltage	44.8 – 57.6 V
Max. Charge / Discharge Current (continuous)	200 A
Peak Charge / Discharge Current (15 s)	300 A
Max. Charge / Discharge Power (15 s)	10,000 W
Depth of Discharge (DoD)	≥ 95%
Cycle Life	≥ 6,000 cycles
Scalability	Max. 15 units in parallel (354 kWh)
Communication	RS485 / CAN
Protection Rating	IP21
Display	LCD + LED
Mounting Type	Floor-mounted
Protection	Integrated smart BMS, circuit breaker, fuse
Charging Temperature Range	0 °C – 55 °C
Discharging Temperature Range	-20 °C – 55 °C
Dimensions	718 x 380 x 990 mm
Weight (net)	226 kg
Warranty	10 years

Scope of Delivery

1x Felicity IVGM20KLP3G1 20 kW low-voltage hybrid inverter (three-phase)
1x Felicity FLA48460-EU 23.5 kWh low-voltage battery storage unit
