25 kW Fronius Solar System with Storage (Optional) | JA Solar 450W Modules | Fronius Reserva Storage (Optional)

SKU: 2099

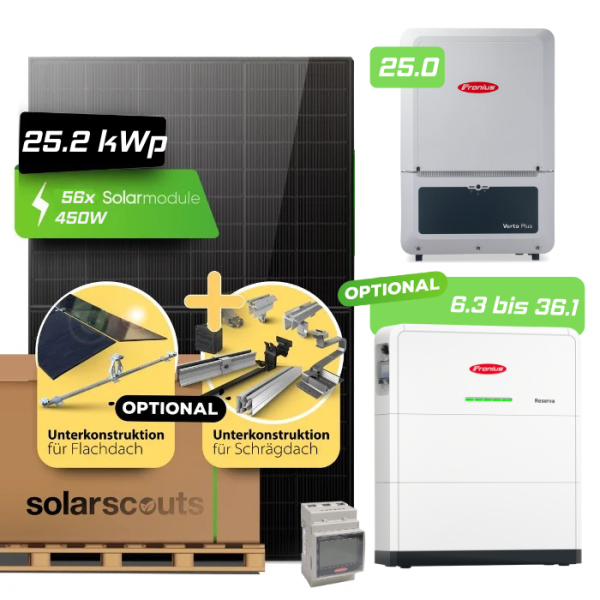

Fronius photovoltaic system with 56 Ja Solar 450 W modules (25.2 kWp), Fronius inverter Verto plus 25 kW, Fronius Smartmeter 65A-3, and optional Fronius Reserva storage (optional without or 6.3–31.6 kWh). Efficient, expandable, and ideal for self-consumption optimization and sustainable power generation.

Available immediately

Delivery time: ca. 4 weeks

from

8.317,76 €

incl. 0% VAT ,

Choose tax zone / country of delivery

Pay securely via:

Question about item

Stell uns deine Frage

0,00 €

Item details

Quantity: 1

Fronius Reserva 6,3 kWh Speicherpaket – 2 Module +...

+2.611,71 €

Item details

Quantity: 1

Fronius Reserva 9.5 kWh Storage Package – 3 Modules...

+3.504,26 €

Item details

Quantity: 1

Fronius Reserva 12.6 kWh Storage Package – 4...

+4.396,81 €

Item details

Quantity: 1

Fronius Reserva 15.8 kWh Storage Package – 5...

+5.289,37 €

Item details

Quantity: 1

+5.289,37 €

Item details

Quantity: 2

Please select only one component.

Schletter (SL-Rack) - Substructure for Pitched Roof for...

+2.538,00 €

Item details

Quantity: 1

ValkBox 3 - Flat Roof Installation 17° (Latest...

+24,99 €

Item details

Quantity: 56

0,00 €

Item details

Quantity: 1

Please select only one component.

incl. 0% VAT , Free shipping

25 kW Fronius Solar System with Storage (Optional) | JA Solar 450W Modules | Fronius Reserva Storage (Optional)

Question about item

Stell uns deine Frage

Description

Productinformation in detail

Fronius Verto Plus 25.0 – 25 kW Hybrid Inverter for Maximum Performance and Grid Stability

The Fronius Verto Plus 25.0 is a high-performance hybrid inverter with a 25 kW AC nominal power and integrated emergency power function (Full Backup). Designed for large PV systems in commercial, agricultural, and multi-family buildings, it combines maximum flexibility, intelligent storage integration, and state-of-the-art safety technology in one device.

With three powerful MPP trackers each with two inputs, the inverter can be optimally used even with complex module fields or east-west orientations. With a maximum DC power of up to 33,250 W, the Verto Plus 25.0 enables particularly high yields. The emergency power supply delivers up to 25,000 VA in the event of a grid failure – up to 50,000 VA in peak operation.

Thanks to the latest communication interfaces such as WLAN, Ethernet, RS485, and Modbus TCP, the Verto Plus 25.0 can be perfectly integrated into smart grids, energy management systems, and charging infrastructure. It is fully compatible with the Fronius Smart Meter as well as battery storage systems like the Fronius Reserva and BYD Battery-Box HVM/HVS.

Technical Highlights:

AC nominal power: 25,000 W
Maximum output power: 25,000 VA
Max. usable DC power: 33,250 W
3 MPP trackers each with 2 DC inputs
MPPT voltage range: 150–870 V
Emergency power capable (Full Backup): 25,000 VA, peak load up to 50,000 VA
Compatible with Fronius Reserva, BYD HVM/HVS
DC connections: Stäubli MC4 Evo Stor
Communication: WLAN, Ethernet, RS485, Modbus TCP/RTU, JSON API
Surge protection: DC Type 1+2 / AC Type 2 integrated
Max. efficiency: 98.16%
European efficiency: 97.74%
Protection class: IP66 – for indoor and outdoor installation

Dimensions & Weight:

Dimensions (H×W×D): 865 × 574 × 279 mm
Item weight: 43 kg
Shipping weight: approx. 48 kg

JA Solar JAM54D41-450/LB Solar Module

The JA Solar JAM54D41-450/LB is a high-quality bifacial solar module from the "DeepBlue 4.0 Pro" series with 450 Wp N-Type TOPCon half-cell technology. The elegant "All-Black" look with double glass construction offers not only a modern design but also optimal performance – even on reflective surfaces like light ground or snow.

With an impressive module efficiency of approx. 22.5% (22%–22.5%) and minimal LID degradation, the module achieves high yields in the long term. The advanced TOPCon approach is particularly characterized by excellent performance range, better temperature coefficients, and superior low-light performance.

Built for maximum durability and system flexibility: The double-glazed module offers up to 5400 Pa snow load and 2400 Pa wind load as well as a nominal system voltage of up to 1500 V. The 30-year linear performance guarantee ensures stable yields in the long term – ideal for private and commercial systems.

Module power (Pmax): 450 Wp
Module efficiency: approx. 22.5%
Bifacial design – yield also from reflective backside
Cell technology: N-Type TOPCon, 108 Half-Cells (6×18)
Glasses: Double glass (Front/Back) – particularly robust
Temperature coefficient Voc: approx. –0.26%/°C
Max. system voltage: 1500 V
Mechanical load capacity: 5400 Pa (snow), 2400 Pa (wind)
Compact dimensions: 1762 × 1134 × 30 mm
Weight: approx. 22 kg
Connections: Stäubli MC4-EVO2 or compatible MC type; Cable: approx. 1200 mm
Junction Box: IP68, 3 Bypass Diodes
Product warranty: 12 years (product); Performance warranty: 30 years linear

Optional: Fronius Reserva – Modular Battery Storage (6.3 – 15.8 kWh)

On request, your solar system can be supplemented with the Fronius Reserva – a modular DC-coupled high-voltage battery storage available in four capacity sizes between 6.3 kWh and 15.8 kWh. The compact design with stackable modules and seamless integration into the Fronius system makes it the ideal choice for more autonomy and security.

The storage is optional and flexibly selectable: Whether you plan your system with storage from the start or want to expand later – the Fronius Reserva adapts. Each system can consist of 2 to 5 storage modules. Per tower, between 6.3 kWh and 15.8 kWh are available. If needed, up to four towers can be operated in parallel – for up to 63 kWh total capacity.

Thanks to DC coupling to Fronius hybrid inverters like the Verto Plus, the storage operates particularly efficiently. The integrated emergency power and black-start function (in combination with Fronius Full Backup) ensures supply security even in the event of a grid failure.

Capacity Variants:

6.3 kWh (2 modules)
9.5 kWh (3 modules)
12.6 kWh (4 modules)
15.8 kWh (5 modules)
31.6 kWh (10 modules)

Technical Features (across models):

DC-coupled high-voltage battery storage (LFP technology)
Modular and space-saving stackable
Black-start capable & Full Backup compatible
Protection class: IP65 – for indoor and protected outdoor areas
Compatible with Fronius hybrid inverters & Smart Meter
Warranty: 10 years / 80% residual capacity
Made in Europe

Scope of Delivery:

– 56× JA Solar JAM54D41 LB 450W Solar Modules

– 1× Fronius Verto Plus 25.0 Hybrid Inverter

– 1× Optional: Fronius Reserva

– 1× Fronius Smart Meter TS 65A-3

Datenblatt - Fronius Verto Plus 15-33,3 kW (DE)

Bedienungsanleitung - Fronius Verto Plus 15.0 - 33.3 kW

Kurzanleitung - Fronius Verto Plus (DE)

Einheitenzertifikat - Fronius Verto Plus (DE)

Datenblatt - Ja Solar JAM54D41 LB-FB Solarmodul (EN)

Zertifikat - Ja Solar JAM54D41 LB-FB Solarmodul (EN)

Datenblatt - Fronius Reserva Speicher (DE)

Handbuch - Fronius Reserva Batteriespeicher (DE)

Broschuere - Fronius Reserva Speicher (DE)
