JA Solar

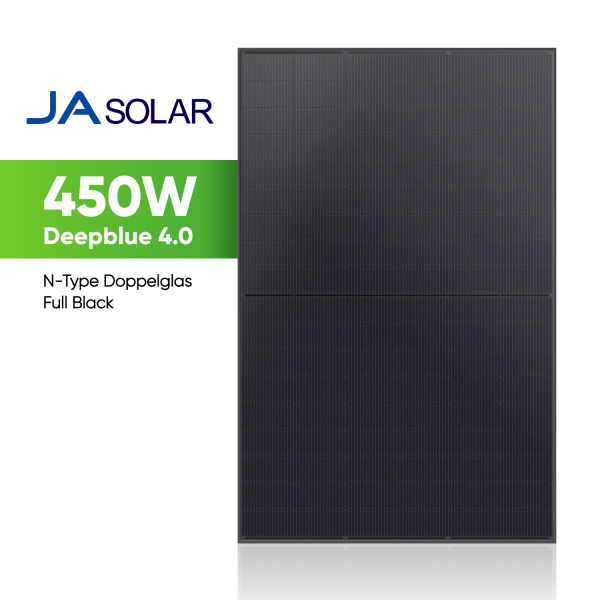

JA Solar 450W JAM54D41LB Bifacial Full Black N-Type Glass-Glass - Pallet

SKU: 2831

✓︎ 450 Wp N-Type glass-glass with up to 22.5% efficiency
✓︎ Bifacial: up to 80% extra yield from the rear side
✓︎ 30-year power output and 25-year product warranty

Available immediately

Delivery time: ca. 6 weeks

2.400,00 €

incl. 0% VAT , plus

Choose tax zone / country of delivery

Pay securely via:

Question about item

Ask us your question

JA Solar 450W JAM54D41LB Bifacial Full Black N-Type Glass-Glass - Pallet

Question about item

Ask us your question

Description

JA Solar JAM54D41LB 450W glass-glass is a powerful bifacial full-black solar module for anyone who wants to achieve maximum yields over the long term with high-quality photovoltaic technology. With 450 Wp peak power, N-Type cells, and a module efficiency of up to 22.5%, this module is ideal for residential rooftop systems. Here you get a complete pallet with 36 modules.

Key benefits for your system

Bifacial extra output: The glass-glass design also uses reflected light on the rear side (bifaciality 80% ±10%) for higher yields.
N-Type cell technology: Very low LID degradation and a better temperature coefficient ensure stable performance over the entire service life.
Long warranty: A 25-year product warranty and a 30-year linear power output warranty give you long-term security.
Robust glass-glass construction: Two glass panes (1.6 mm) permanently protect the cells and enable high static load capacity.

Reliable solar modules for your roof

With the JA Solar JAM54D41LB solar module, you tap into a large share of your own solar power, boosting your self-consumption. The bifacial glass-glass technology is particularly durable and weather-resistant, making these photovoltaic modules a reliable foundation for your system. Thanks to good low-irradiance performance, the modules also deliver energy on cloudy days and during the morning and evening hours. The elegant full-black look blends harmoniously into almost any roof. For many years, you'll benefit from stable power generation, lower electricity costs, and greater independence from the public grid.

GENERAL DATA (basic module information)
Manufacturer	JA Solar
Model	JAM54D41-450/LB
Module type	N-Type glass-glass, bifacial, full black
Cell technology	n-Bycium+ 16BB, MBB half-cell (mono)
Number of cells	108 (6 × 18)
Product warranty	25 years
Power output warranty	30 years linear
PERFORMANCE (STC) (values at 1000 W/m², 25 °C, AM1.5G)
Rated power (Pmax)	450 Wp
Module efficiency	22.5%
Open-circuit voltage (Voc)	40.30 V
Voltage at Pmax (Vmp)	32.99 V
Short-circuit current (Isc)	14.41 A
Current at Pmax (Imp)	13.64 A
Power tolerance	0 ~ +3%
TEMPERATURE & OPERATION (behavior under real-world conditions)
Temp. coefficient Pmax (γ_Pmp)	-0.290%/°C
Temp. coefficient Voc (β_Voc)	-0.250%/°C
Temp. coefficient Isc (α_Isc)	+0.045%/°C
NOCT	45 ± 2 °C
Operating temperature	-40 °C to +85 °C
Max. system voltage	1500 V DC
Max. fuse rating	30 A
Bifaciality	80% ± 10%
MECHANICAL DATA (construction, dimensions & load capacity)
Dimensions	1762 × 1134 × 30 mm
Weight	22 kg
Front/rear glass	1.6 mm / 1.6 mm (glass-glass)
Junction box	IP68, 3 diodes
Connectors	QC 4.10-351 / MC4-EVO2A
Cable cross-section	4 mm² (IEC), 12 AWG (UL)
Max. load front / rear	5400 Pa / 2400 Pa
Safety class	Class II
Fire rating	UL Type 38 / Class C
Packaging	36 pieces per pallet
