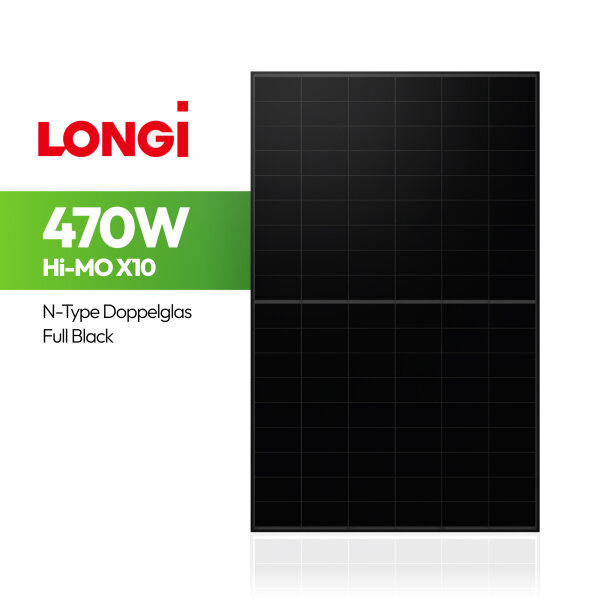

LONGi Hi-MO X10 470 Wp Glass-Glass Bifacial (LR7-54HVD-470M)

SKU: 2673

✓︎ 470 Wp power & bifacial yields for greater independence
✓︎ Premium glass-glass construction protects against extreme weather
✓︎ Transparent, elegant design enhances your home

Available immediately

Delivery time: 5 - 7 Workdays

86,90 €

incl. 0% VAT , plus

From	Unit price
8	85,90 €*
16	84,90 €*
36	83,90 €*

Choose tax zone / country of delivery

Pay securely via:

Question about item

Ask us your question

LONGi Hi-MO X10 470 Wp Glass-Glass Bifacial (LR7-54HVD-470M)

Question about item

Ask us your question

Description

LONGi Hi-MO X10 470 Wp (LR7-54HVD-470M) is a high-performance glass-glass solar module with bifacial design for residential and commercial photovoltaic systems that focus on maximum yield. With 470 Wp nominal power, a module efficiency of 23.0%, and innovative N-Type HPBC2.0 cell technology, this LONGi solar module reliably delivers high yields even in difficult light conditions.

Key Benefits for Your System

High Efficiency: With 23.0% module efficiency, you get the maximum amount of solar power from limited roof space.
Bifacial Extra Yields: The glass-glass construction also uses reflected light on the rear side, with up to 70% bifaciality.
Long Performance Warranty: 30-year linear power warranty and 15 years on materials and workmanship.
Robust Design: Double glass with black anodized aluminum frame and high mechanical load capacity of 5400 Pa.

Intelligent Use of Your Solar Power

The LONGi Hi-MO X10 solar module converts sunlight into usable solar power especially efficiently, increasing your self-consumption. Thanks to bifacial glass-glass technology, the LR7-54HVD-470M generates additional energy via the module's rear side, boosting the overall yield of your photovoltaic system. The N-Type TaiRay wafers with HPBC2.0 and 0BB structure ensure favorable temperature behavior and low power degradation of under 1% in the first year. This gives you a great degree of independence from the public grid and reduces your electricity costs for many years to come. The anti-shading properties minimize yield losses from partial shading and prevent local overheating. This means your battery storage is optimally supplied, and your system remains reliable in the long term.

GENERAL DATA (Basic module information)
Manufacturer	LONGi
Series	Hi-MO X10
Model	LR7-54HVD-470M
Cell Technology	N-Type TaiRay Wafer, HPBC2.0, 0BB
Cell Arrangement	108 cells (6 × 18)
Bifaciality	70 ± 5%
PERFORMANCE (STC) (AM1.5, 1000 W/m², 25 °C)
Maximum Power (Pmax)	470 W
Module Efficiency	23.0%
Open Circuit Voltage (Voc)	40.31 V
Short Circuit Current (Isc)	14.78 A
Voltage at Pmax (Vmp)	33.29 V
Current at Pmax (Imp)	14.13 A
Power Tolerance	0 ~ 3%
PERFORMANCE (NOCT) (AM1.5, 800 W/m², 20 °C, 1 m/s)
Maximum Power (Pmax)	357 W
Open Circuit Voltage (Voc)	38.28 V
Short Circuit Current (Isc)	11.84 A
Voltage at Pmax (Vmp)	31.60 V
Current at Pmax (Imp)	11.30 A
ELECTRICAL & THERMAL PARAMETERS (Operating values)
Max. System Voltage	DC 1500 V (IEC)
Max. Fuse Rating	30 A
Operating Temperature	-40 °C ~ +85 °C
NOCT	45 ± 2 °C
Temperature Coefficient Isc	+0.050 %/°C
Temperature Coefficient Voc	-0.200 %/°C
Temperature Coefficient Pmax	-0.260 %/°C
MECHANICAL & CERTIFICATION (Construction and load capacity)
Glass	Double glass: 2.0 mm coated tempered glass + 1.6 mm semi-tempered glass
Frame	Black anodized aluminum frame
Dimensions	1800 × 1134 × 30 mm
Weight	23.5 kg
Junction Box	IP68, three diodes
Connection Cable	4 mm², +400 / -200 mm (±1200 mm adjustable)
Max. Front Load	5400 Pa
Max. Rear Load	2400 Pa
Hail Impact Test	25 mm at 23 m/s
Fire Safety Class	IEC Class C
Protection Class	Class II
Certifications	IEC 61215, IEC 61730, UL 61730
Warranty	15 years product, 30 years linear power

Scope of Delivery

1x LONGi Hi-MO X10 solar module LR7-54HVD-470M (470 Wp, glass-glass bifacial)
