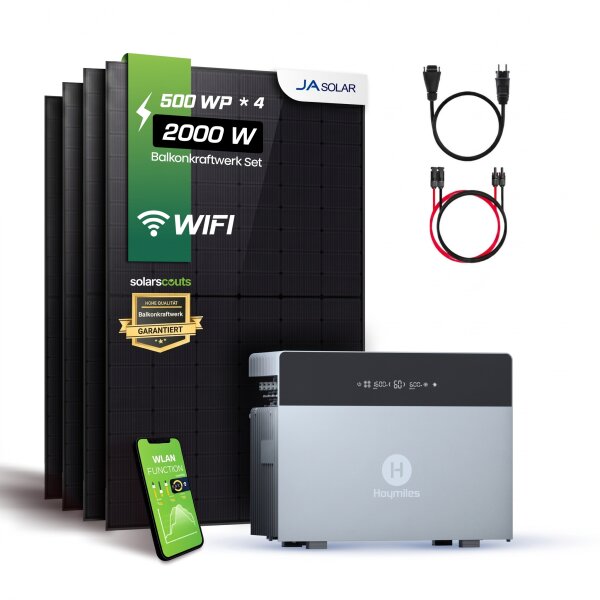

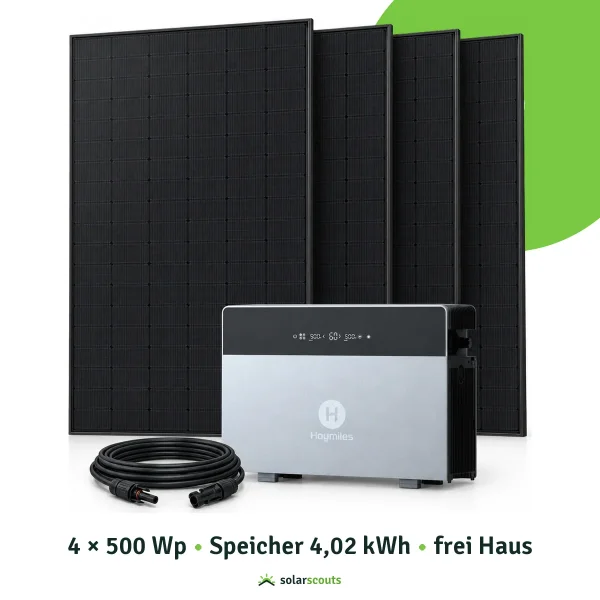

Balcony Power Plant 2000W Hoymiles 4020 X Full Black

SKU: 2668

✓︎ 4 kWh LiFePO4 storage – use solar power at night too
✓︎ 2000 Wp JA Solar Fullblack modules, 22.6% efficiency
✓︎ Plug & Play in 1 minute, IP66 & fire suppression system

Available immediately

Delivery time: 3 - 5 Workdays

1.289,00 €

incl. 0% VAT ,

Choose tax zone / country of delivery

Pay securely via:

Question about item

Ask us your question

Schletter (SL-Rack) Pitched Roof Tile Roof for 2 Modules...

Schrägdach

+90,46 €

Item details

Quantity: 2

ValkBox 3 - Flat Roof Mounting 17° (Latest Version...

+23,99 €

Item details

Quantity: 4

Trapezoidal Sheet Roof + Wall Mounting Kit for 2 Solar...

+32,88 €

Item details

Quantity: 2

+29,00 €

Item details

Quantity: 4

solarscouts mounting bracket for balcony power plants |...

+29,99 €

Item details

Quantity: 4

0,00 €

Item details

Quantity: 1

ValkAce – PV Mounting System for Tile Roofs (2...

ValkAce Schrägdach für 2 Module

+59,00 €

Item details

Quantity: 2

Please select only one component.

incl. 0% VAT , Free shipping

Balcony Power Plant 2000W Hoymiles 4020 X Full Black

Question about item

Ask us your question

Description

Balcony Power Plant 2000W Hoymiles 4020 X Fullblack is the well-thought-out complete kit for anyone who wants to generate their own solar power and use it around the clock. The plug-and-play system combines 2000 Wp high-performance JA Solar Fullblack modules with the Hoymiles HiBattery 4020 X – a battery storage unit with 4 kWh capacity and an integrated inverter. This gives you a significant degree of independence from the public power grid.

Key Benefits for Your System

Power day and night: The integrated 4 kWh LiFePO4 battery storage keeps surplus solar energy ready until you need it in the evening.
High yields: The four bifacial glass-glass modules from JA Solar achieve an efficiency of 22.6% and also make use of diffuse light on the rear side.
Maximum safety: An integrated aerosol fire suppression system, a BMS with 48 protection functions, and IP66 protection rating ensure safe operation.
Fast installation: Thanks to the plug-and-play connection, the home system is ready to use in about one minute – without an electrician.

Smart Storage of Your Solar Power

A balcony power plant with battery storage ensures that valuable solar energy doesn't flow unused into the public grid, but is instead available exactly when your household needs it. During the day, the four Fullblack modules charge the 4 kWh battery of the Hoymiles 4020 X, which you can gradually expand to up to 16 kWh as needed. The intelligent battery management system with 48 protection functions works fully automatically in the background, reliably protecting the cells. Via the S-Miles Home app and the integrated Wi-Fi connection, you can keep track of yield and consumption at any time. With an output power of 800 W, you feed your solar power directly into your household circuit, noticeably reducing your electricity bill. This way, you gain a good degree of independence – with minimal installation effort.

SYSTEM OVERVIEW (Complete kit configuration)
Product type	Balcony power plant with battery storage (complete kit)
Total module power	2000 Wp (4 × 500 Wp)
AC output power	800 W
Storage capacity	4 kWh (expandable up to 16 kWh)
BATTERY & INVERTER (Hoymiles HiBattery 4020 X)
Manufacturer	Hoymiles
Model	HiBattery 4020 X (HB-4020-X)
Battery technology	Lithium iron phosphate (LiFePO4 / LFP)
Rated energy	4020 Wh
Rated capacity	314 Ah
Rated voltage (battery)	12.8 V
Cycle life	≥ 8000 cycles (at 70% SOH)
Expandability	Stackable up to 16 kWh
Rated output power (AC)	800 W
Rated output current	3.48 A
PV input	4 MPPT, max. 4000 W (4 × 1000 W)
Max. input voltage	60 V
MPPT voltage range	16 – 60 V
Max. DC/AC efficiency	96.5%
Grid connection	230 V (180 – 270 V) / 50 Hz (45 – 55 Hz)
Communication	Bluetooth, 2.4 GHz Wi-Fi
Monitoring	S-Miles Home App
Compatibility	Open MQTT protocol, Shelly / Everhome meters
Safety	BMS with 48 protection functions, aerosol fire suppression system, overpressure valve, over-temperature protection, self-heating
Protection rating	IP66
Cooling	Natural convection
Noise level	< 20 dB
Operating temperature	-20 to +55 °C
Dimensions (W × H × D)	520 × 384 × 199 mm
Weight	42 kg
Warranty	10 years
SOLAR MODULES (JA Solar JAM60D41-500/LB Fullblack)
Manufacturer	JA Solar
Model	JAM60D41-500/LB (Fullblack)
Quantity in kit	4 pieces
Cell type	n-Type, monocrystalline (n-Bycium+, 16BB Half-Cell)
Module construction	Glass-glass, bifacial (double glass)
Rated power (Pmax) per module	500 Wp
Power tolerance	0 ~ +3%
Module efficiency	22.6%
Bifaciality	80% ± 10%
Open circuit voltage (Voc)	43.85 V
Short circuit current (Isc)	14.42 A
Voltage at MPP (Vmp)	36.91 V
Current at MPP (Imp)	13.55 A
Max. system voltage	1500 V DC
Temperature coefficient (Pmax)	-0.290%/°C
Dimensions	1953 × 1134 × 30 mm
Weight	27.3 kg
Front glass / back glass	2.0 mm / 2.0 mm
Junction box	IP68, 3 diodes
Connectors	QC 4.10-351 / MC4-EVO2A
Max. mechanical load (front / rear)	5400 Pa / 2400 Pa
Fire rating	UL Type 29 / Class C
Product warranty	15 years
Performance warranty	30 years (linear)

Scope of Delivery

1× Hoymiles HiBattery 4020 X (HB-4020-X) battery storage with integrated inverter
4× JA Solar JAM60D41-500/LB Fullblack solar module (500 Wp each)
Mounting hardware / installation material
Cabling
