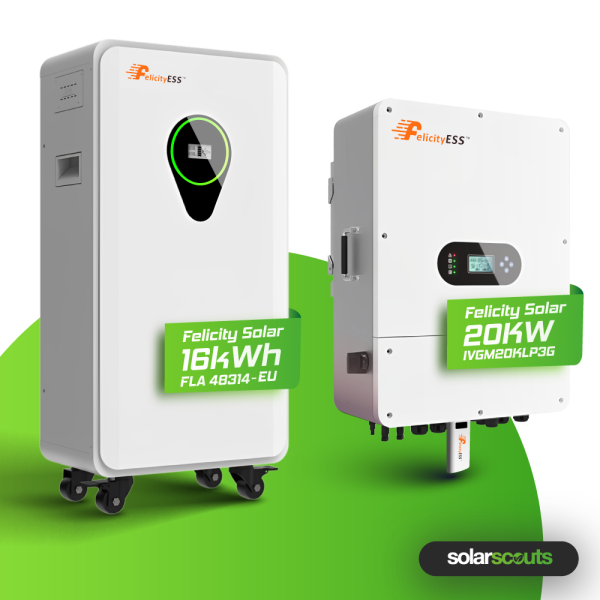

Felicity 20 kW Hybrid Inverter Set with 16 kWh Felicity Battery Storage

SKU: 2507

✓︎ 20 kW three-phase hybrid inverter with EPS backup power
✓︎ 16 kWh LiFePO4 battery storage with ≥ 8000 cycles
✓︎ Wi-Fi monitoring & aerosol fire suppression system

Available immediately

Delivery time: 3 - 4 weeks

3.470,00 €

incl. 0% VAT , plus

Choose tax zone / country of delivery

Pay securely via:

Question about item

Ask us your question

Felicity 20 kW Hybrid Inverter Set with 16 kWh Felicity Battery Storage

Question about item

Ask us your question

Description

Felicity 20 kW Hybrid Inverter Set with 16 kWh Felicity Battery Storage is the powerful solution for anyone who wants to efficiently store their solar power and significantly increase their independence from the grid. The system combines a 20 kW low-voltage hybrid inverter with a three-phase connection and a LiFePO4 battery storage unit with 16 kWh of usable capacity. This makes the set ideal for larger homes, commercial properties, and demanding photovoltaic systems.

Your Benefits at a Glance

High self-sufficiency: With 16 kWh of storage capacity, you can use your solar power even in the evening and at night.
Backup power capability: The integrated EPS function reliably supplies your loads even during a grid outage.
Maximum safety: The battery storage features an aerosol fire suppression system as well as an intelligent BMS with breaker and fuse.
Long service life: LiFePO4 technology enables ≥ 8000 charge cycles for many years of worry-free operation.

The System in Detail

The Hybrid Inverter

The Felicity IVGM20KLP3G1 is a three-phase low-voltage hybrid inverter with a rated AC output of 20 kW. It supports 100% unbalanced three-phase output power and, thanks to 2 MPPT trackers and 4 PV inputs, offers flexible design of your photovoltaic system with up to 32 kW of PV input power. The LCD touch control, Wi-Fi monitoring, and EPS backup power function make the inverter the central control unit of your energy system. With an IP65 protection rating, it is also suitable for outdoor installation.

The Battery Storage

The Felicity FLA48314-EU battery storage unit is based on safe LiFePO4 cell technology and offers 16 kWh of rated energy at 51.2 V nominal voltage. The integrated, intelligent battery management system reliably protects the cells and ensures efficient operation with a depth of discharge of ≥ 95%. Up to 15 units can be connected in parallel, allowing the system to be easily expanded to up to 240 kWh later on. This secures your solar power storage for high self-consumption and maximum independence.

SYSTEM OVERVIEW (General system performance data)
Inverter AC rated power	20 kW
Storage capacity	16 kWh
Phase configuration	Three-phase (3L+N+PE)
Backup power / UPS	Yes (EPS function)
Max. PV input power	32 kW
Battery expandability	Up to 15 units in parallel (max. 240 kWh)
HYBRID INVERTER 1x Felicity IVGM20KLP3G1 (Low-voltage, three-phase)
Battery type	Li-Ion / Lead-Acid
Battery voltage range	40 – 60 V
Max. charge / discharge current	350 A
Max. PV input power	32 kW
Max. PV input voltage	800 V
MPPT voltage range	160 – 650 V
MPP trackers / strings	2 trackers / 2+2 strings
AC rated power (active power)	20 kW
Max. AC apparent power	22 kVA
Peak power (off-grid)	2x rated power for 10 s
Nominal grid voltage	220/380, 230/400 Vac (-20% ~ +15%)
Grid frequency	50/60 Hz
Communication with BMS	RS485 / CAN
Monitoring	Wi-Fi / 4G
Protection rating	IP65
Weight (net)	48.7 kg
Dimensions (W×H×D)	750 × 450 × 268 mm
Warranty	5 years / 10 years
BATTERY STORAGE 1x Felicity FLA48314-EU (LiFePO4, low-voltage)
Battery technology	Lithium Iron Phosphate (LiFePO4)
Rated energy	16 kWh
Nominal voltage	51.2 V
Operating voltage range	44.8 – 57.6 V
Max. continuous charge / discharge current	160 A
Peak current (15 s)	300 A
Max. charge / discharge power (15 s)	8,000 W
Scalability	Up to 15 units in parallel (max. 240 kWh)
Depth of discharge (DoD)	≥ 95%
Cycle life	≥ 8000 cycles (25 °C, 0.5C/0.5C, 90% DoD, 70% EOL)
Communication	RS485 / CAN
Protection rating	IP21
Charging temperature range	0 °C ~ +55 °C
Discharging temperature range	-20 °C ~ +55 °C
Display	LCD + LED
Mounting type	Floor-mounted
Protective devices	Integrated BMS, breaker, fuse
Certification	UN38.3
Weight (net)	121.5 kg
Dimensions (W×H×D)	435 × 880 × 247 mm
Warranty	10 years
